Wide carrying range,01

High standard customization

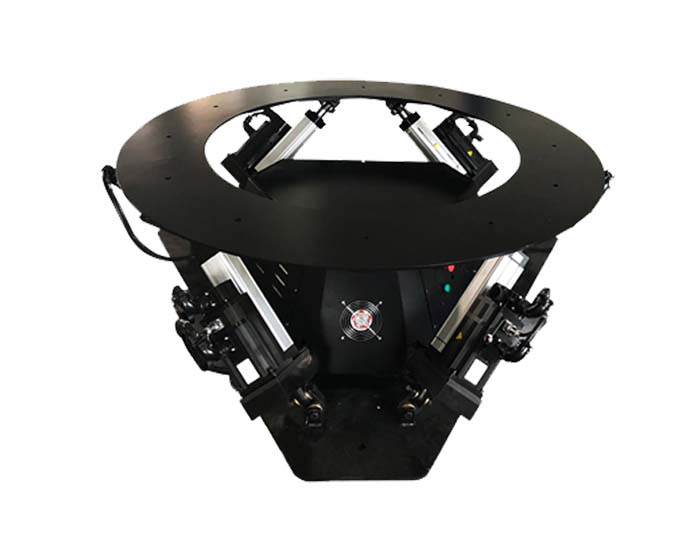

The motion platform of Allcontroller has a carrying range of 0.1kg-100T, a mature R&D system, motion algorithms and secondary development capabilities. Support various non-standard customizations to meet the needs of scientific research simulation simulation. The motion platform we produce has high motion accuracy and speed, while achieving accurate data calibration and convenient user operation interface, easy to use.

We strictly control every step of the design, research and development, production and on-site debugging of the motion platform to provide users with the best motion platform solutions.

Excellent performance indicators02

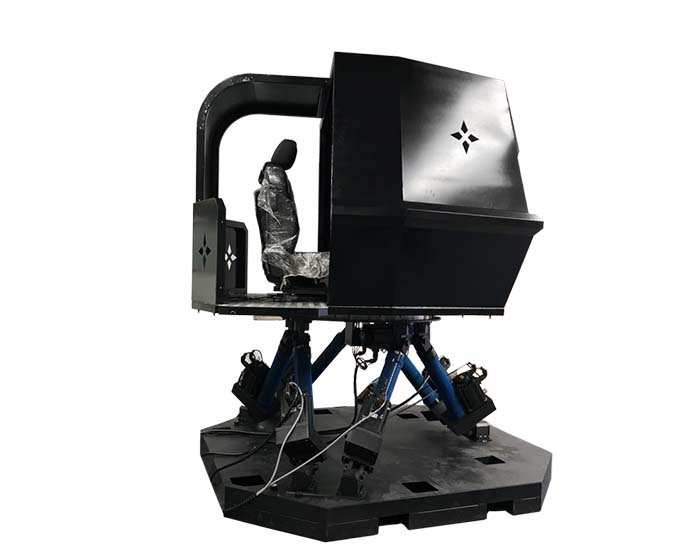

In order to meet the customization requirements of different customers for the motion platform, the motion platform produced by Allcontroller can reach a maximum acceleration of 20m/s², a maximum speed of 1m/s, and a repeat positioning accuracy of 0.01mm. Vibration is processed to achieve excellent performance indicators.

The platform structure is designed and developed in accordance with the requirements of China's national standards and military standards. The kinematics and simulation structure simulation tests are carried out at the initial stage of the design, and the ISO9001 is strictly implemented for production management. At the same time, multiple protection systems are set up to ensure the safety of the motion platform during the movement.

Market-leading software control03

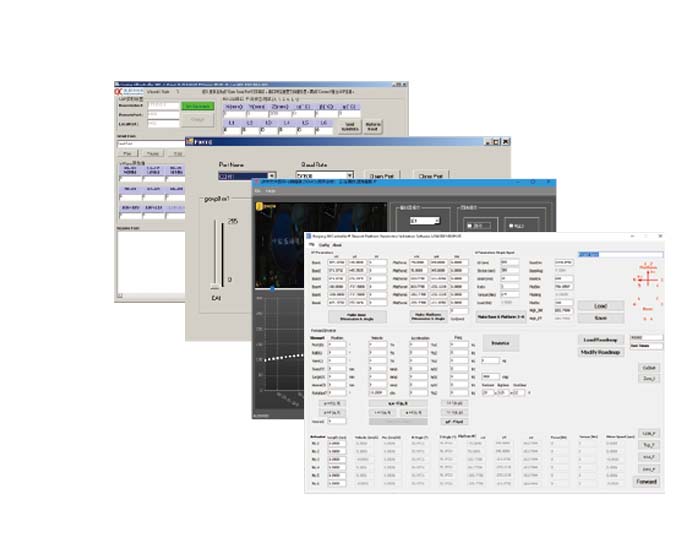

he Allcontroller control software can adjust the mechanical parameters of the platform (articulation point coordinates and platform height, etc.); mechanical parameters of the electric cylinder (electric cylinder stroke, electric cylinder lead, synchronous belt reduction ratio, linear/foldback electric cylinder, etc.); speed Acceleration planning configuration (using the corresponding PID control algorithm to control the positioning speed of the platform, the speed and acceleration during normal operation, etc.); platform pose correction (automatically superimpose a compensated pose within the program) ax+b; control accuracy selection (According to the different requirements of different customers, provide platforms with different accuracy); other special functions (rotating shaft, crankshaft, neutral hold, whether to use data washing in and washing out function, etc.), by adjusting these parameters to control the movement of the motion platform Movement, bumps, rolling and pitching etc.

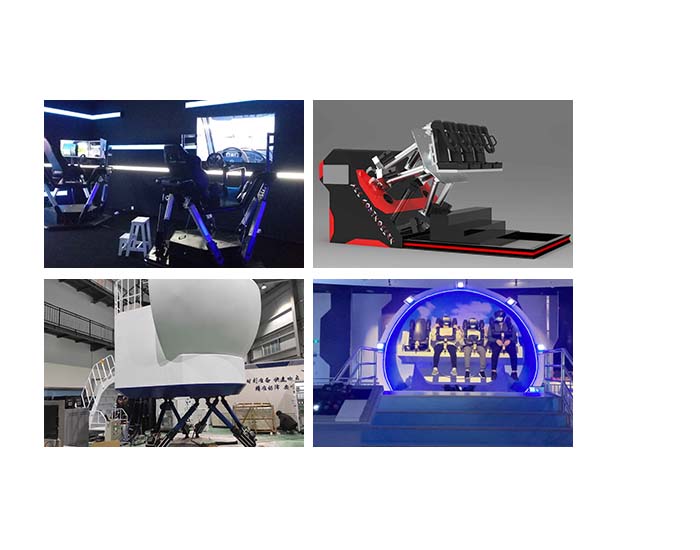

Full motion flight simulator and racing simulator04

Full Control Technology adopts the international advanced motion control system, and uses the servo electric cylinder to develop a 6dof motion platform, which can complete difficult and thrilling actions such as diving, climbing, tilting, turning, rotating, falling, bumping, etc., from simulated driving, video and audio , Simulation simulation gives users a super-real experience in many aspects.

The motion platform of Total Control Technology is highly interesting, exciting, entertaining and shocking, which is very attractive to customers and driving experience effects. The dynamic platform series developed are widely loved by users and have a large number of applications in China and overseas. Welcome to contact us for consultation!
