6DOF high-precision motion platform



Parameter

Platform Parameters
Electric Cylinder Parameters
Servo motor and driver parameters:
size
Customize as needed
form
Foldback
Rated speed
3000rpm
weight
120kg
Screw diameter
10mm
Working current
5A
payload
250kg
Screw lead
5mm
Motor rated power
0.75KW*6
longitudinal displacement
220mm
journey
250mm
torque
2.39N.m
Lateral displacement
220mm
Reduction ratio
1.5
System rated total power
4.5kW
Vertical lift
220mm




pitch
±20deg




roll
±20deg




twist
±20deg





Features

·Our motion simulator platform is VR compatible, virtual reality is paired with our motion simulator.

·We offer Full 6 DOF motion simulator versions to reproduce automobiles, aircrafts, or any other vehicle motion.

·Adjustable motion simulator mounts allow customization of the platform to your needs.

·Our motion simulator is very reliable and widely used in universities and military.

·Experience every bump, vibration and speed change, an incredibly immersive experience.

·After careful design and years of experience to ensure the excellent performance and quality of each motion simulator.

·Built in power source, including an active PFC function to protect from short circuit, overload, overvoltage and overheating.

·Compatible with all major racing and flight titles on PC with simple USB plug in.

·Realistic super smooth operation using advanced actuator speed management.



Software Interface

motion platform controlling software

Program

motion platform controlling software

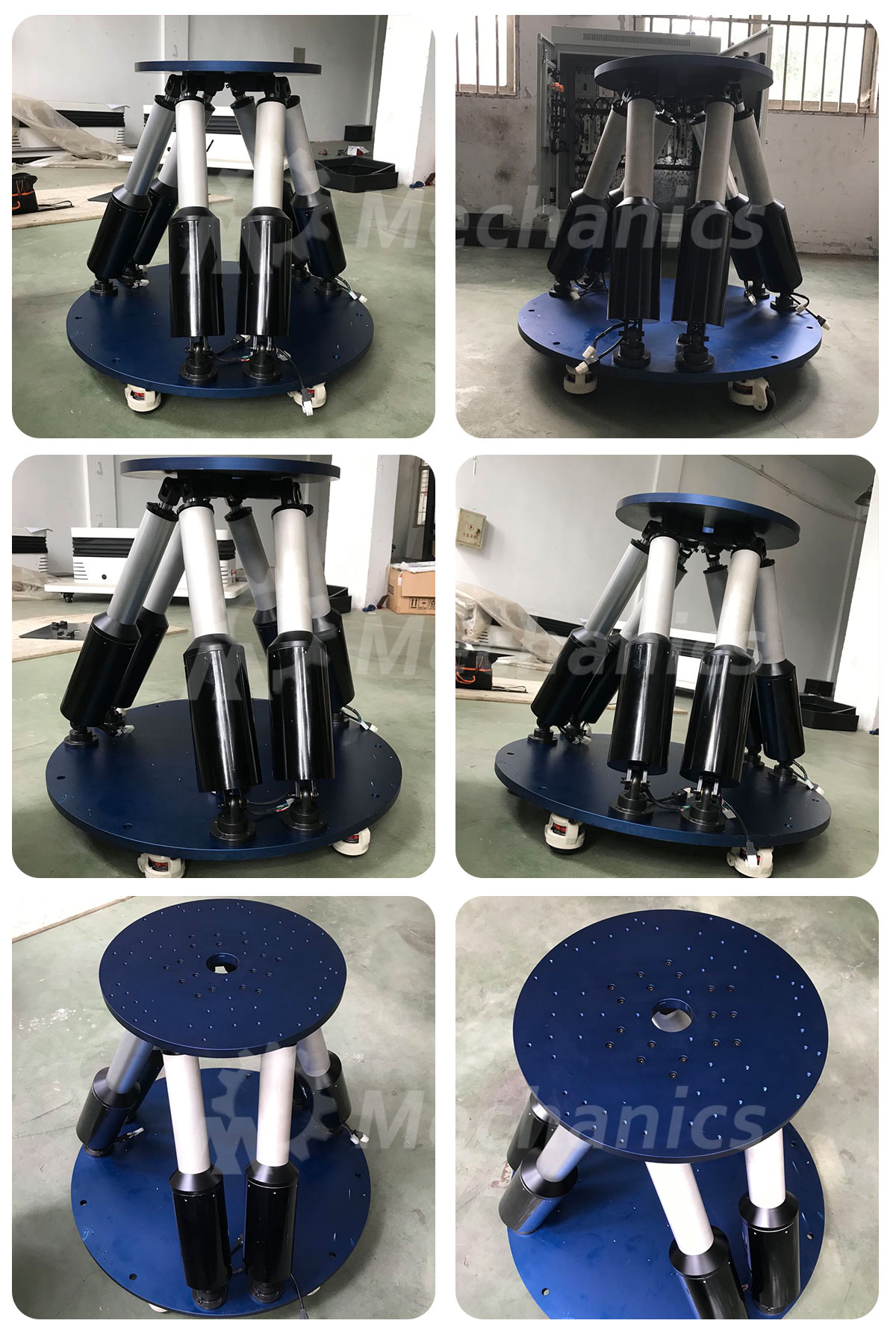

Products Show

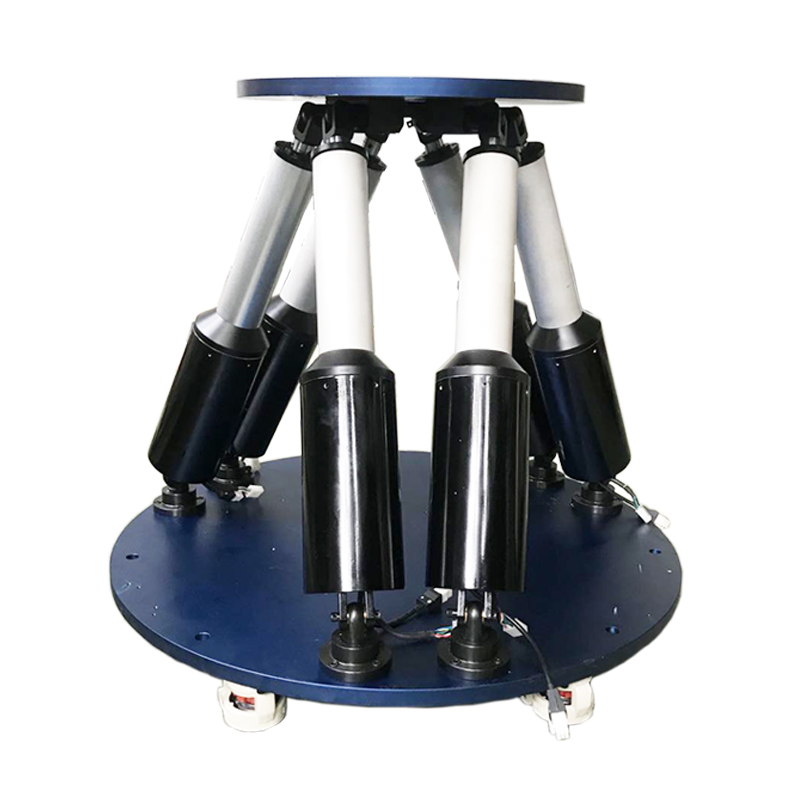

6DOF high-precision motion platform
