6DOF Motion Platform
China Professional Motion Simulator Customization
Customized Solutions For 6DOF Motion Simulators
6DOF Motion Platform , Motion Simulator , Motion System .
The Allcontroller 6DOF (Degree of Freedom) motion platform is a device that simulates motion in 3 axes of rotation (pitch, roll, and yaw) and 3 axis of translation (heave, surge and sway). The platform is engineered to replicate the motions experienced by an object or vehicle in these six directions, creating an immersive simulation experience.
We always insist on providing you with high-quality and reliable motion systems.
Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.

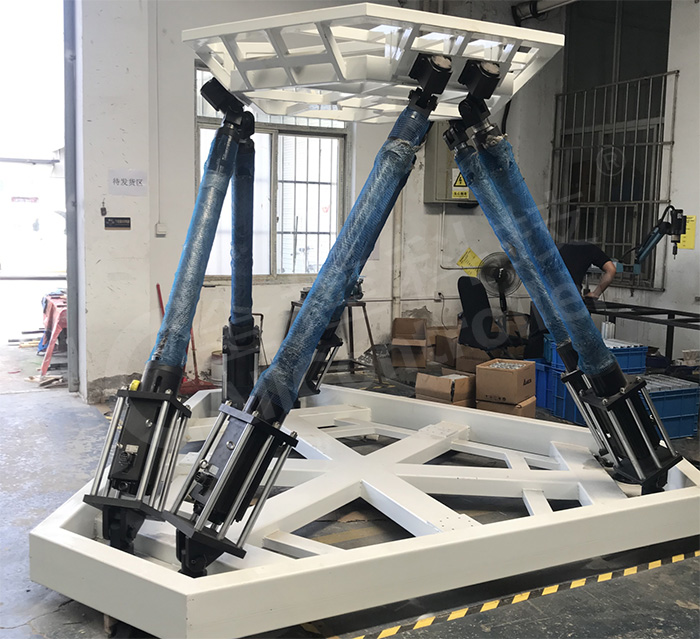

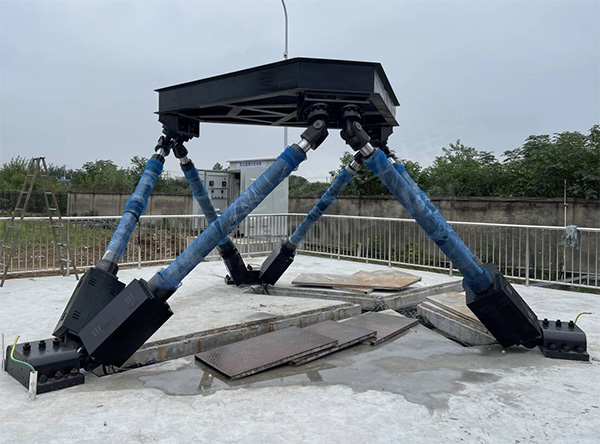

Different from other crank structure 6DOF motion platforms, we basically use a direct-connected servo electric cylinder structure, so the load will be greater.

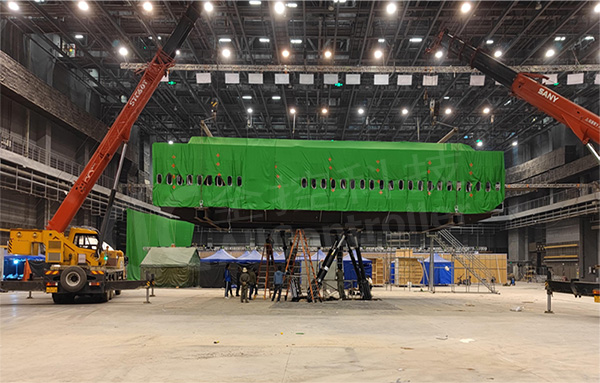

We have built a motion platform with a maximum load of 30 tons.
The core components of the six-degree-of-freedom platform system we produce are independently produced and developed by our company, which ensures that the motion systems we produce have the same quality standards.
For cross-border customers, the most important thing is the stability and reliability of the motion system, because equipment maintenance costs will be very high due to distance restrictions. That's why our motion systems are your reliable solution.
The platform motion works in the following ways.
1. Receive real-time data communication from the host computer (external communication).
2. Read the fixed action file script (need to synchronize with the start time of the external device).
3. Regular action (curve or surface movement) according to the set period and frequency.
4. Manual control (single-cylinder stroke independent test, single attitude independent test, back to the center, back to the origin, the platform of the switching control, that is, the platform will first be automatically down to the blocking position and then close the contactor)
Note: Receive external instructions can be the position data can also be the cylinder elongation data.

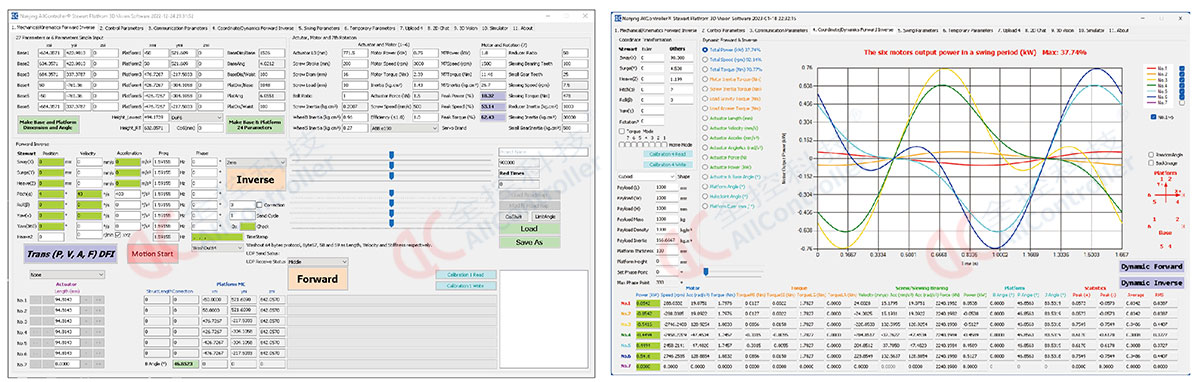

Platform articulation point coordinates, electric cylinder, motor, reducer parameter calibration, kinematics positive and negative solutions, conversion between amplitude, velocity, acceleration, frequency of external swing parameters four.
Overall,the motion platforms we produce provide a sufficient level of motion simulation to meet a wide range of uses. Whether it is a 3DOF motion platform or a 6DOF motion platform, we promise you that they have the same excellent performance and quality. You just need to make trade-offs between functionality and economy and choose the solution that suits you best.
Professional motion system service provider
Nanjing Allcontroller Technology Co.,Ltd. is a professional manufacturer of motion platforms and motion systems in China. The company has a team of more than 100 people and is headquartered in Nanjing, China.
For the past 12 years, Allcontroller's team of highly skilled engineers has worked with customers around the world to integrate motion systems into a wide range of applications. High-quality products and services are our top priority, and we are also committed to providing high-quality motion systems at favorable prices to a variety of customers.
Provide high-quality customization services
As a leading sports platform manufacturer, our core strength lies in providing personalized customized services for each customer. We know that each project has its own uniqueness, and it is necessary to design and manufacture the most suitable motion platform based on the customer's specific needs and the actual site environment. Every project starts with a discussion to set its specifications. In the process of advancing motion system projects, Allcontroller will always assist customers to find specifications suitable for their projects.
This is the biggest advantage of our company's personalized customized services. We always take customer satisfaction as the highest goal of our services.
Provide complete solutions
We have extensive experience in the innovation and application of technology, and can design and adjust according to various complex and specific needs to achieve precise and optimized solutions. We do this by putting our customers in direct dialogue with our design and project teams, allowing for truly personalized design and manufacturing. In this way, we are able to create products that truly fit your needs, allowing your business, project or research to move forward successfully.
We are your motion system design and manufacturing service provider, so we provide you with complete solutions throughout the entire process, including the best consulting, service, technical support, and maintenance services.
Global service, Fast response
We are committed to providing customers with timely and professional after-sales service. Our after-sales service team is composed of technical experts with rich experience in the industry and familiar with the products. They will go all out to solve every customer's problem. No matter how big or small the problem is, when you encounter a problem that cannot be solved, you can contact us via mobile phone, whatspapp, or email.

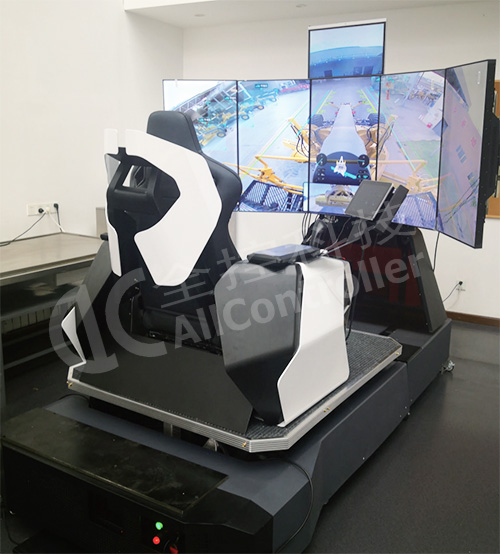

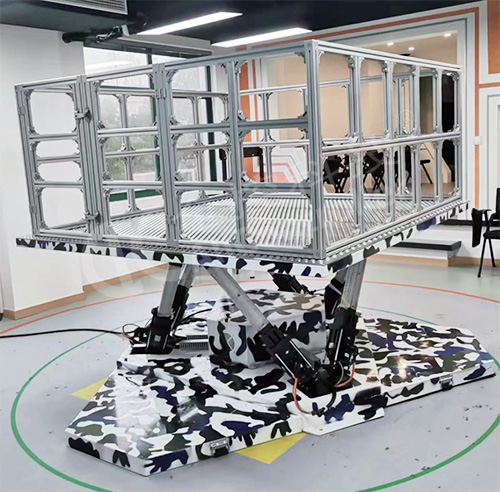

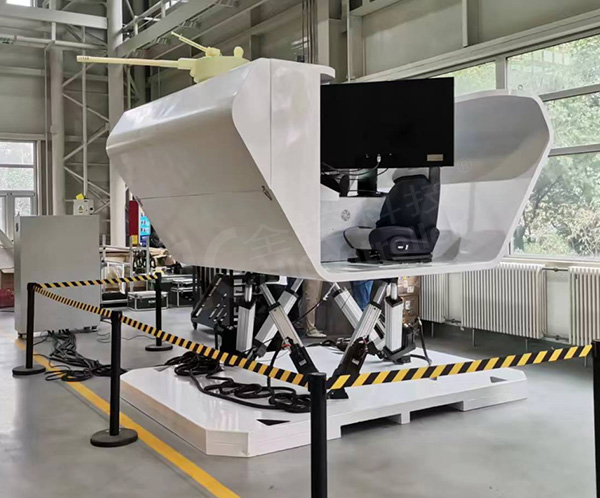

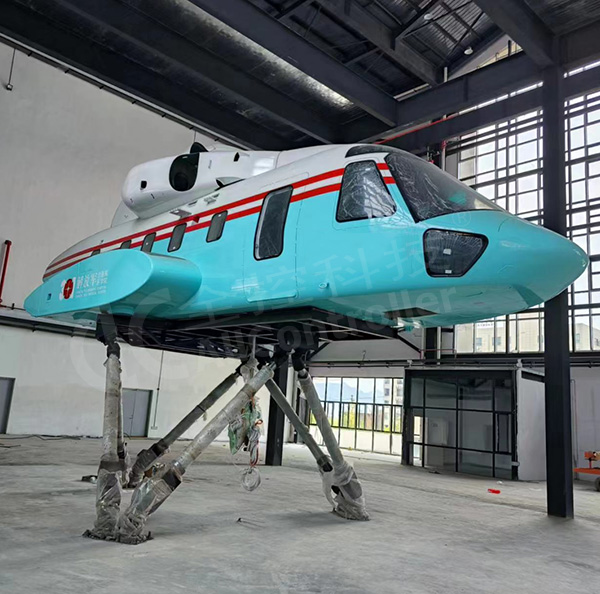

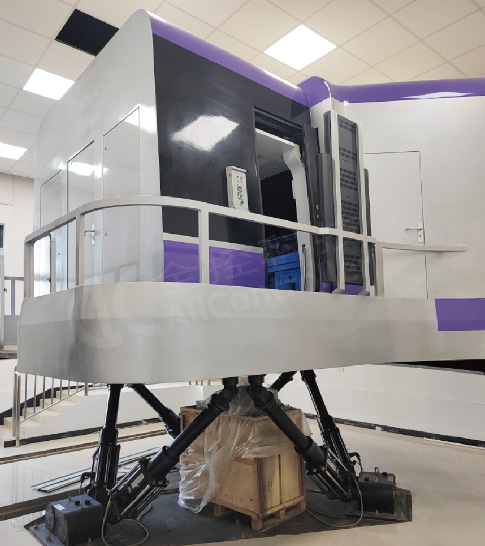

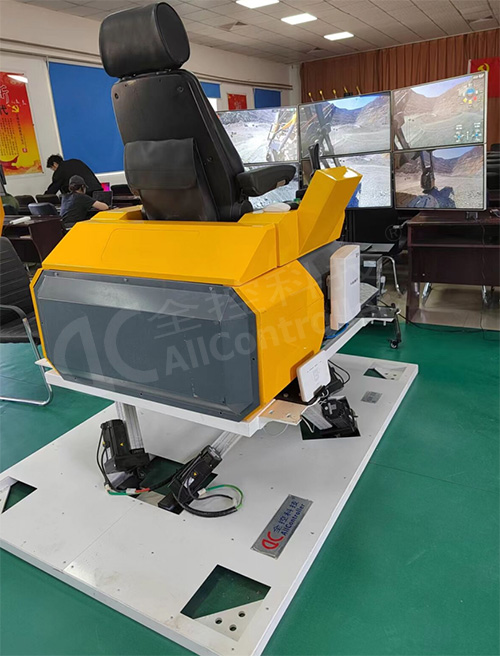

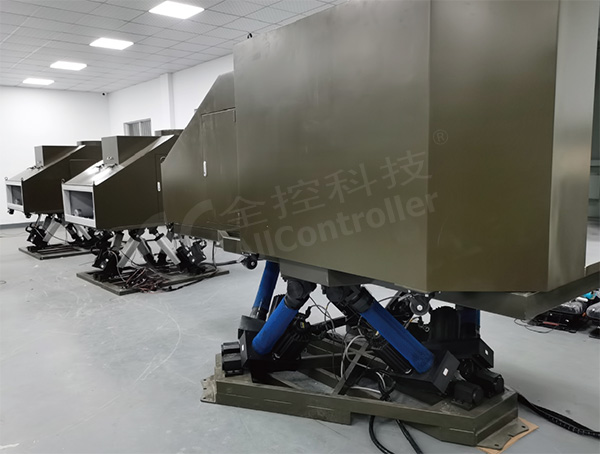

Examples of our products
Project Cases
We specialize in the design and manufacture of motion platforms and motion simulators. But this is not just what we do, here you can learn more about us.
