Parameter

Platform Parameters		Electric Cylinder Parameters		Servo motor and driver parameters:
size	Customize as needed	form	Foldback	Rated speed	3000rpm
weight	450kg	Screw diameter	36mm	Working current	10A
payload	800kg	Screw lead	10mm	Motor rated power	3KW*6
longitudinal displacement	180mm	journey	200mm	torque	5.73N.m
Lateral displacement	180mm	Reduction ratio	1.5	System rated total power	18kW
Vertical lift	190mm
pitch	±15deg
roll	±15deg
twist	±16deg

Features

1. In order to enhance the realism of the simulation, there are high-performance dynamic prompts;

2. Fully digital closed-loop servo control, professional motion control card to ensure smooth transition of motion and high simulation, reducing dynamic drift and distortion.

3. New modular combination and free and flexible system integration to meet different needs of customers

4. High-precision transmission system and optimized combination to ensure the high efficiency of the system reaches 85%

5. Easy installation and simple maintenance Multiple mechanical and electrical safety protections ensure the absolute safety of equipment

6. The system has high response time, high acceleration and low noise

7. Visible and friendly man-machine interface, easy to operate

Software Interface

Program

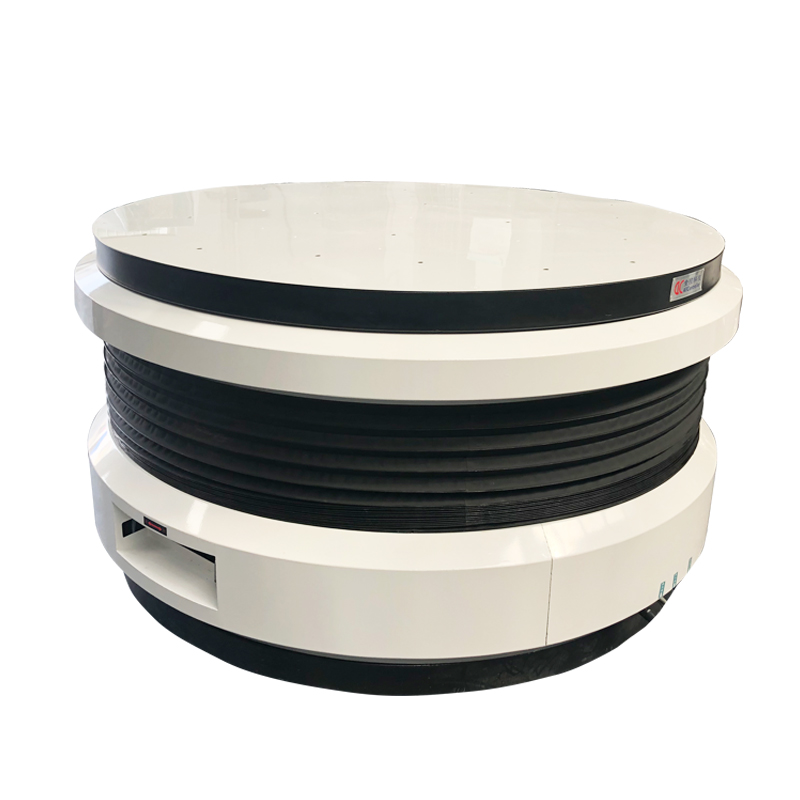

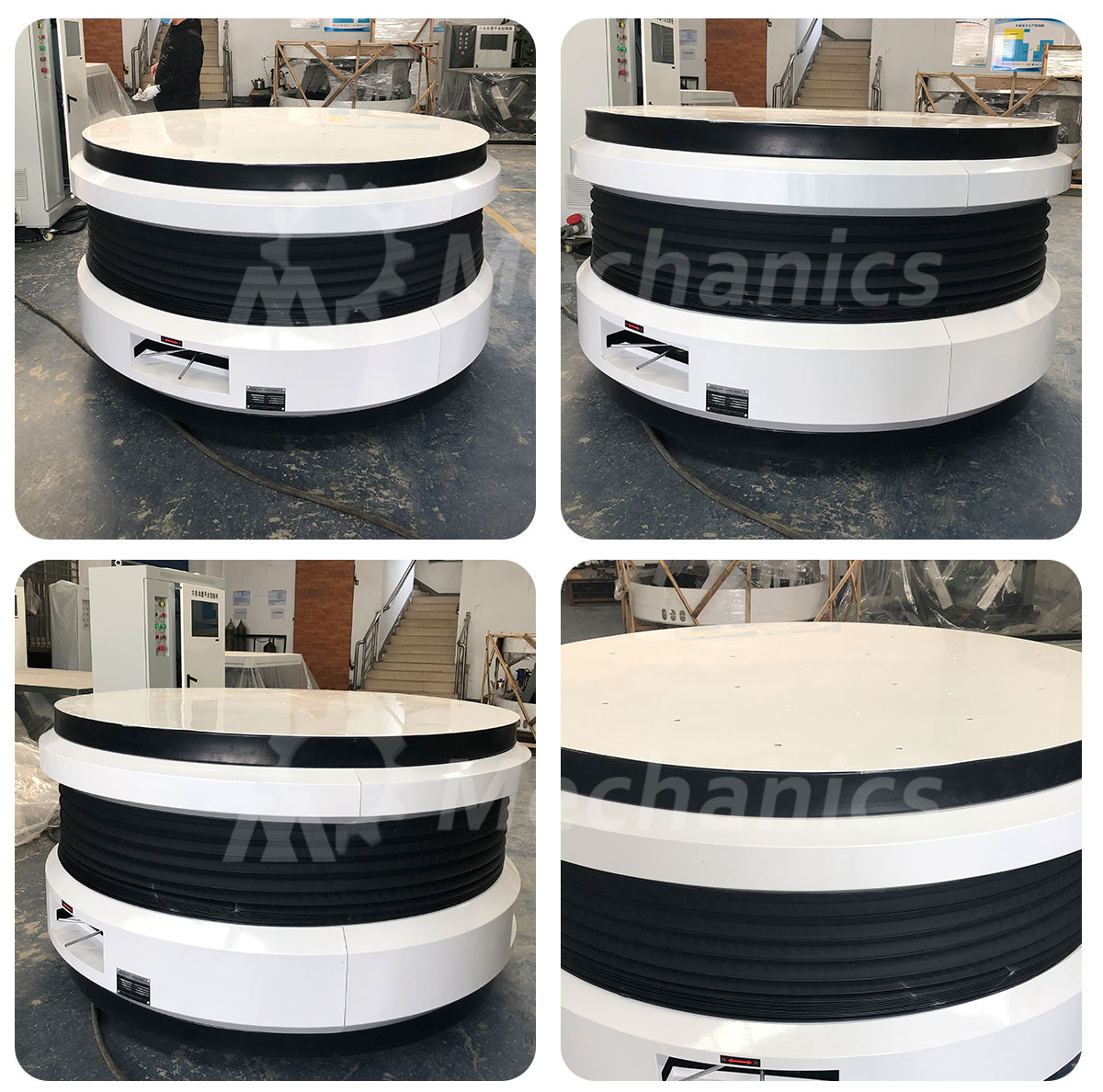

Products Show
