Parameter
Platform Parameters | Electric Cylinder Parameters | Servo motor and driver parameters: | |||
size | Customize as needed | form | Foldback | Rated speed | 3000rpm |
weight | 120kg | Screw diameter | 10mm | Working current | 5A |
payload | 500kg | Screw lead | 5mm | Motor rated power | 0.75KW*6 |
longitudinal displacement | 220mm | journey | 200mm | torque | 2.39N.m |
Lateral displacement | 220mm | Reduction ratio | 1.5 | System rated total power | 4.5kW |
Vertical lift | 220mm | ||||
pitch | ±20deg | ||||
roll | ±20deg | ||||
twist | ±20deg | ||||
Features
Software Interface
Program

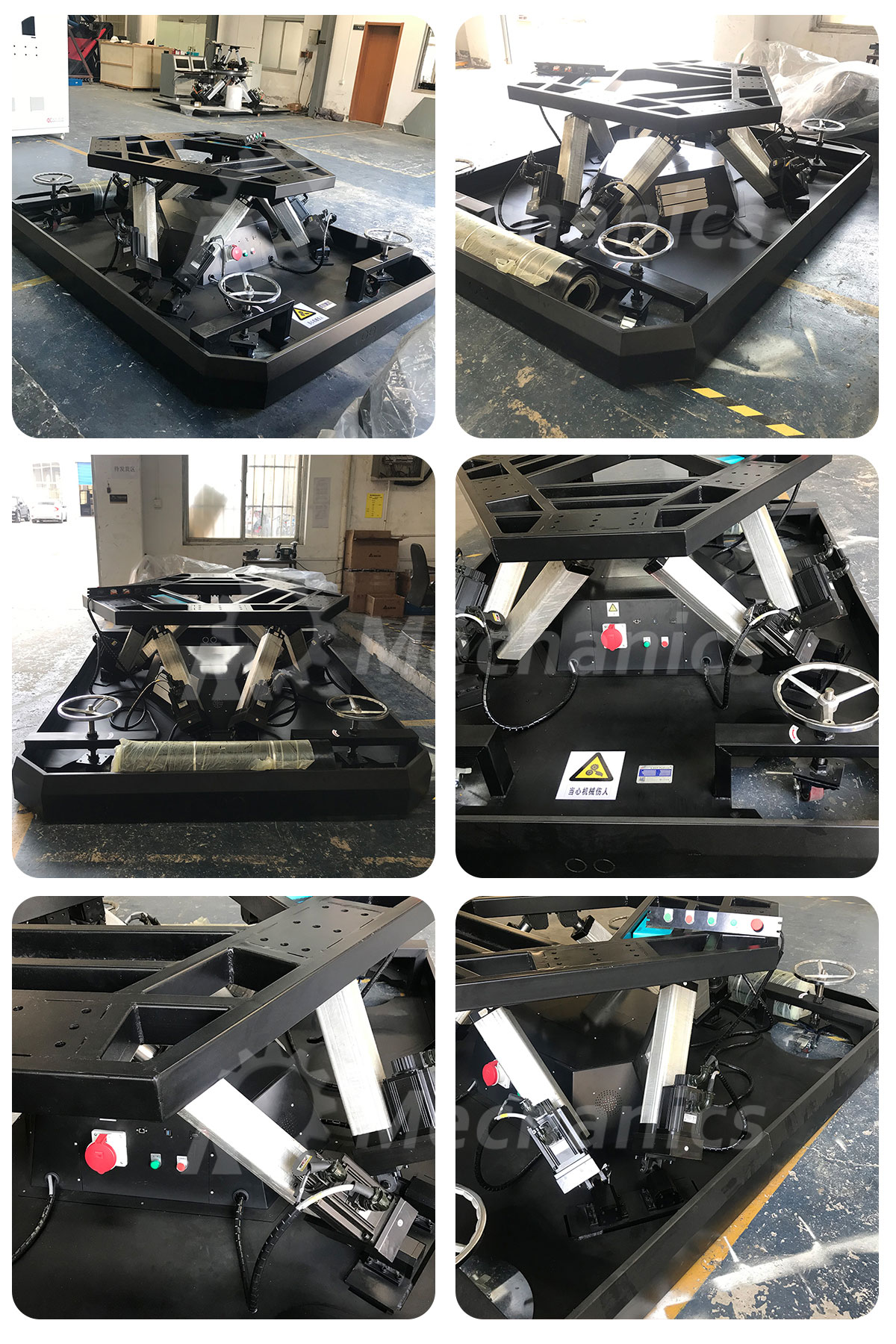

Products Show
Address
No.128, Keyuan Road, Dongshan street, Jiangning District, Nanjing City, Jiangsu Province, China
+ 86 25 83983051
allcontroller123@gmail.com
Contact Us
If you need to customize Motion Platform, Please contact us
