USD $ 1699

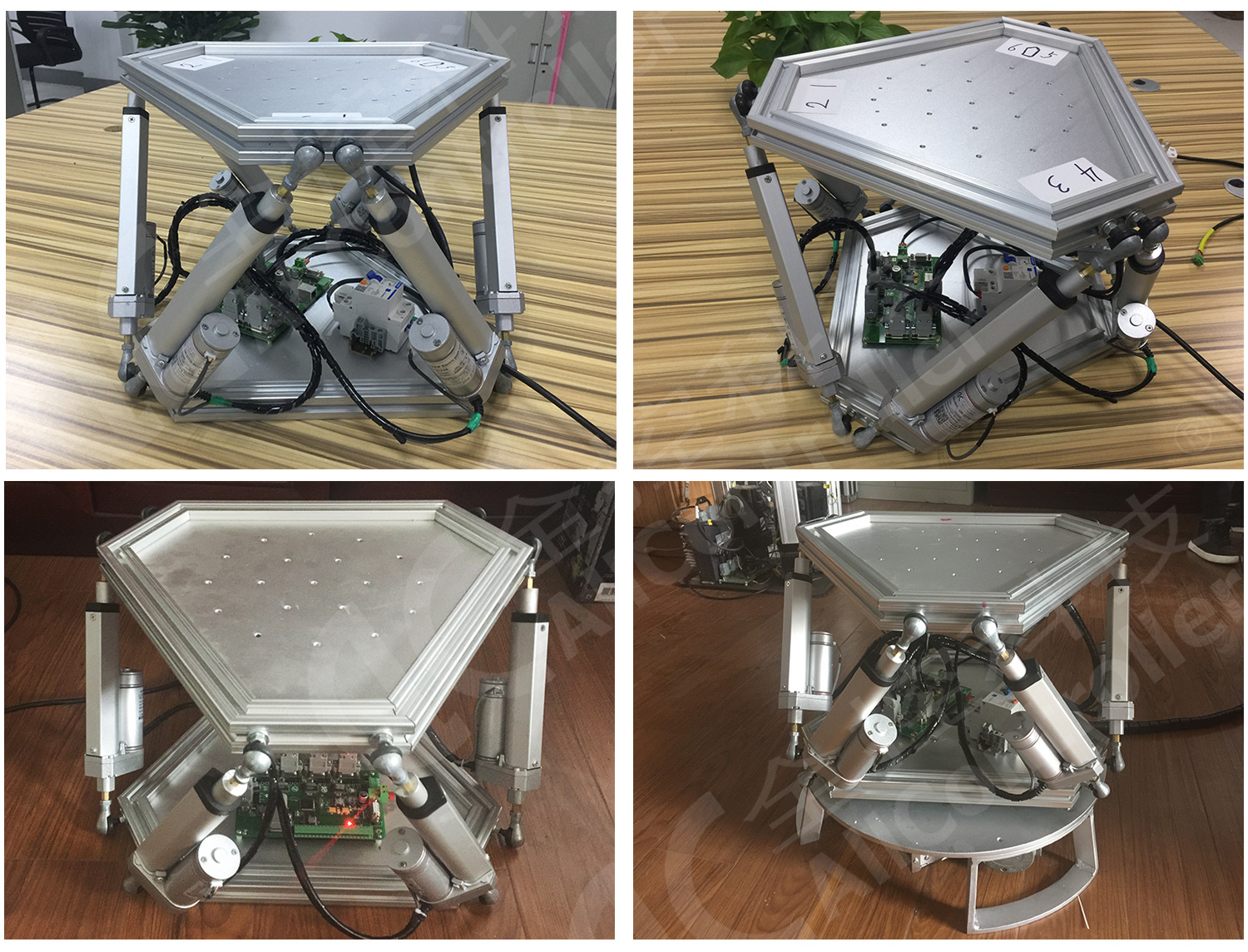

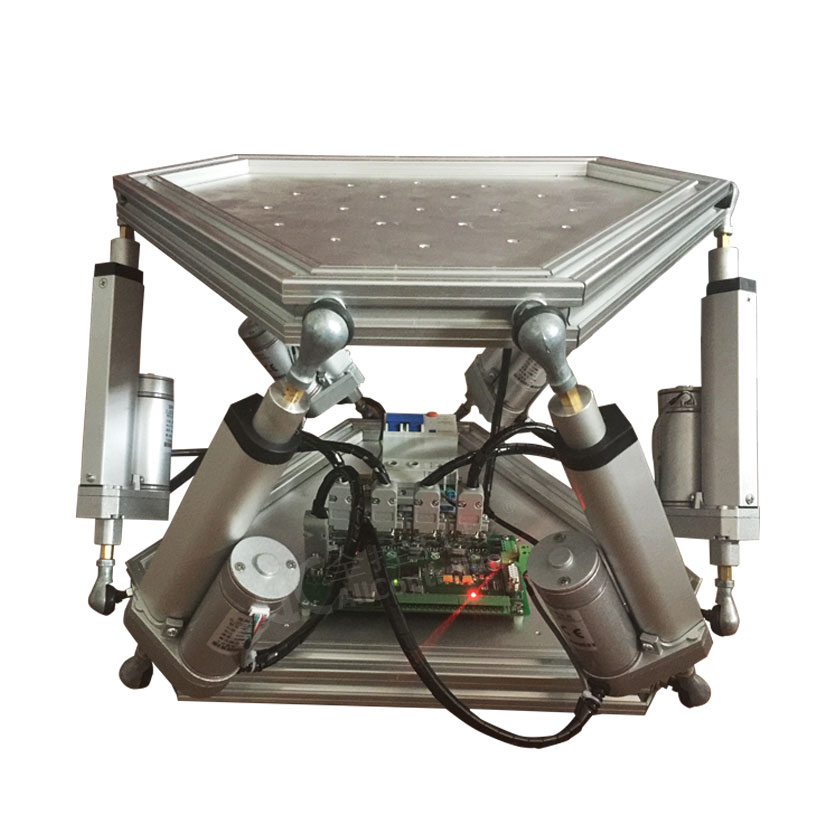

6DOF Small Linear Actuator Platform is a small 6dof motion platform composed of miniature Linear Actuator. It adopts the integrated design of drive and control, bus control, which can realize the precise servo control of any position within the travel range, and the built-in absolute position sensor, which will not lose the position information after power failure, and no need to find the zero position. It is suitable for application scenarios that do not require load and precision, and can be used as simulation research, teaching and training, medical equipment and other fields.
☑Game Simulator
☑Industrial Testing
☑Teaching and training
☑Medical equipment
☑Experimental research
☑Software testing
☑Other fields...
| Features | Excursion | Velocity | Acceleration |
|---|---|---|---|
| Roll | ±15° | 15°/s | 30°/s² |
| Pitch | ±15° | 15°/s | 30°/s² |
| Twist | ±15° | 15°/s | 30°/s² |
| Surge | 80mm | 100mm/s | 1m/s² |
| Sway | 80mm | 100mm/s | 1m/s² |
| Heave | 80mm | 100mm/s | 1m/s² |
Allcontroller Control Motion Platform Schematic
We always insist on providing you with high-quality and reliable motion systems.
Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.
