USD $ 9800
The 6DOF motion platform is suitable for universities, military scientific research, industrial simulation testing, amusement equipment and other fields. It has a small overall size and is easy to carry and move. In addition, it has the following features:
1. Posture simulation, sine wave simulation, single-degree-of-freedom motion, multi-degree-of-freedom compound motion;
2. Road spectrum filtering processing, random wave reproduction, road spectrum, wave spectrum, flight spectrum reproduction and other functions;
3. Through the TCP/IP protocol, it provides users with a third-party control interface (host computer interface):
4. Provide internal synchronization and external synchronization data output control interface.
☑Game Simulator
☑Industrial Testing
☑Teaching and training
☑Medical equipment
☑Experimental research
☑Software testing
☑Satellite test platform
☑Flight Simulator
☑Film shooting
☑Sea motion compensation
☑Earthquake simulation
☑Drone landing
☑All kinds of simulated driving
☑Other fields...
| Features | Excursion | Velocity | Acceleration |
|---|---|---|---|
| Roll | ±20° | 45°/s | 100°/s² |
| Pitch | ±20° | 45°/s | 100°/s² |
| Twist | ±20° | 45°/s | 100°/s² |
| Surge | 200mm | 500mm/s | 6m/s² |
| Sway | 200mm | 500mm/s | 6m/s² |
| Heave | 200mm | 500mm/s | 6m/s² |

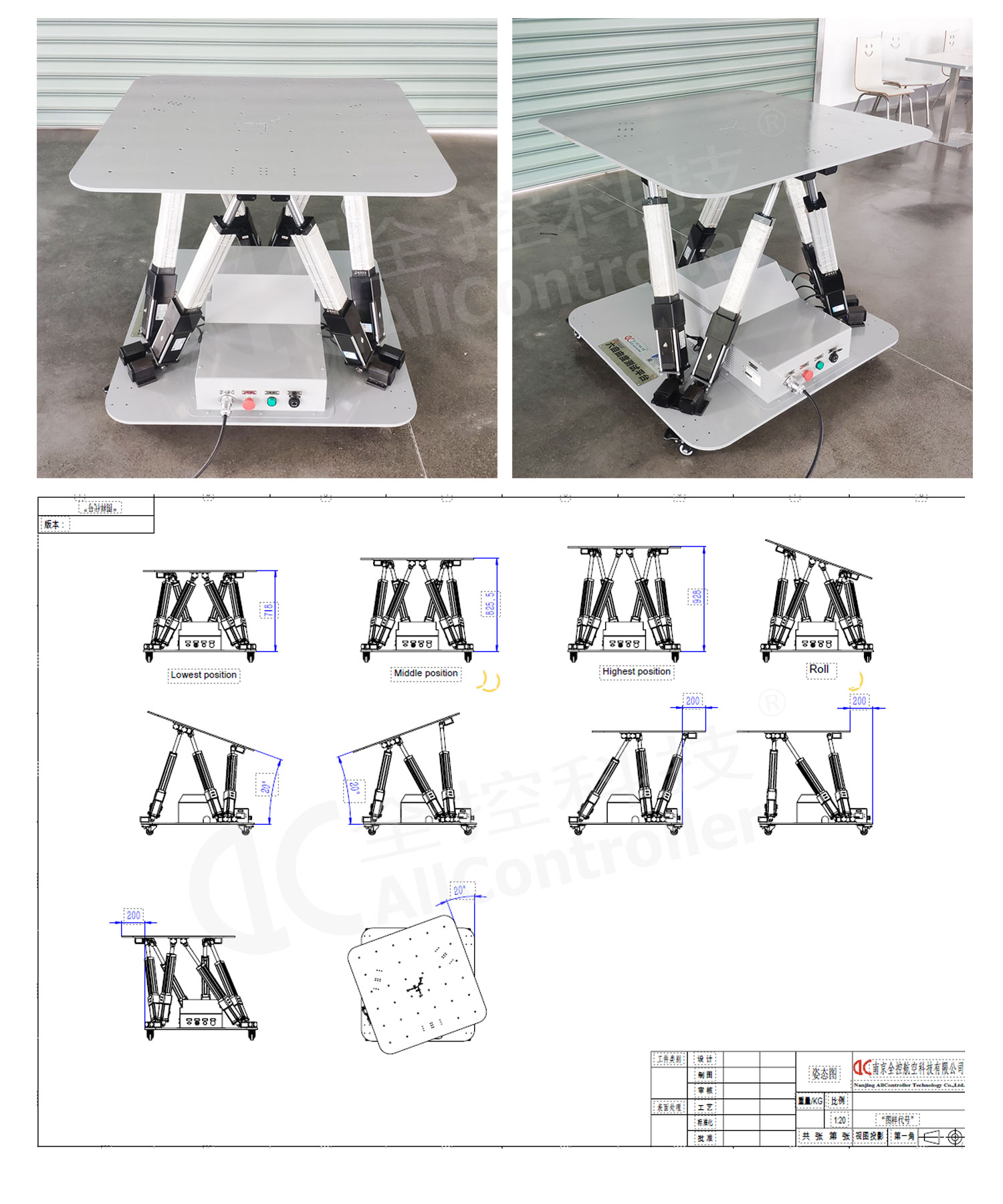

Allcontroller Control Motion Platform Schematic
We always insist on providing you with high-quality and reliable motion systems.
Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.
