USD $ 7299
3DOF Motion Platform can simulate pitch, roll and lift motion equipment. Widely used in all kinds of driving simulators, flight simulation, industrial testing, research applications, amusement rides, etc.
We support in-depth customization and development, our 3DOF motion systems have the same quality standards regardless of size, and our equipment is durable and virtually maintenance-free.
The 3DOF Motion Platform provides a sufficient level of motion simulation for a wide range of uses and is a cost-effective alternative for those who do not require the complexity of a 6DOF Motion Platform.
☑Game Simulator
☑Industrial Testing
☑Teaching and training
☑Medical equipment
☑Experimental research
☑Software testing
☑Satellite test platform
☑Flight Simulator
☑Film shooting
☑Sea motion compensation
☑Earthquake simulation
☑Drone landing
☑All kinds of simulated driving
☑Other fields...
| Features | Excursion | Velocity | Acceleration |
|---|---|---|---|
| Roll | ±18° | 40°/s | 100°/s² |
| Pitch | ±18° | 40°/s | 100°/s² |
| Twist | / | / | / |
| Surge | / | / | / |
| Sway | / | / | / |
| Heave | 100mm | 400mm/s | 4m/s² |

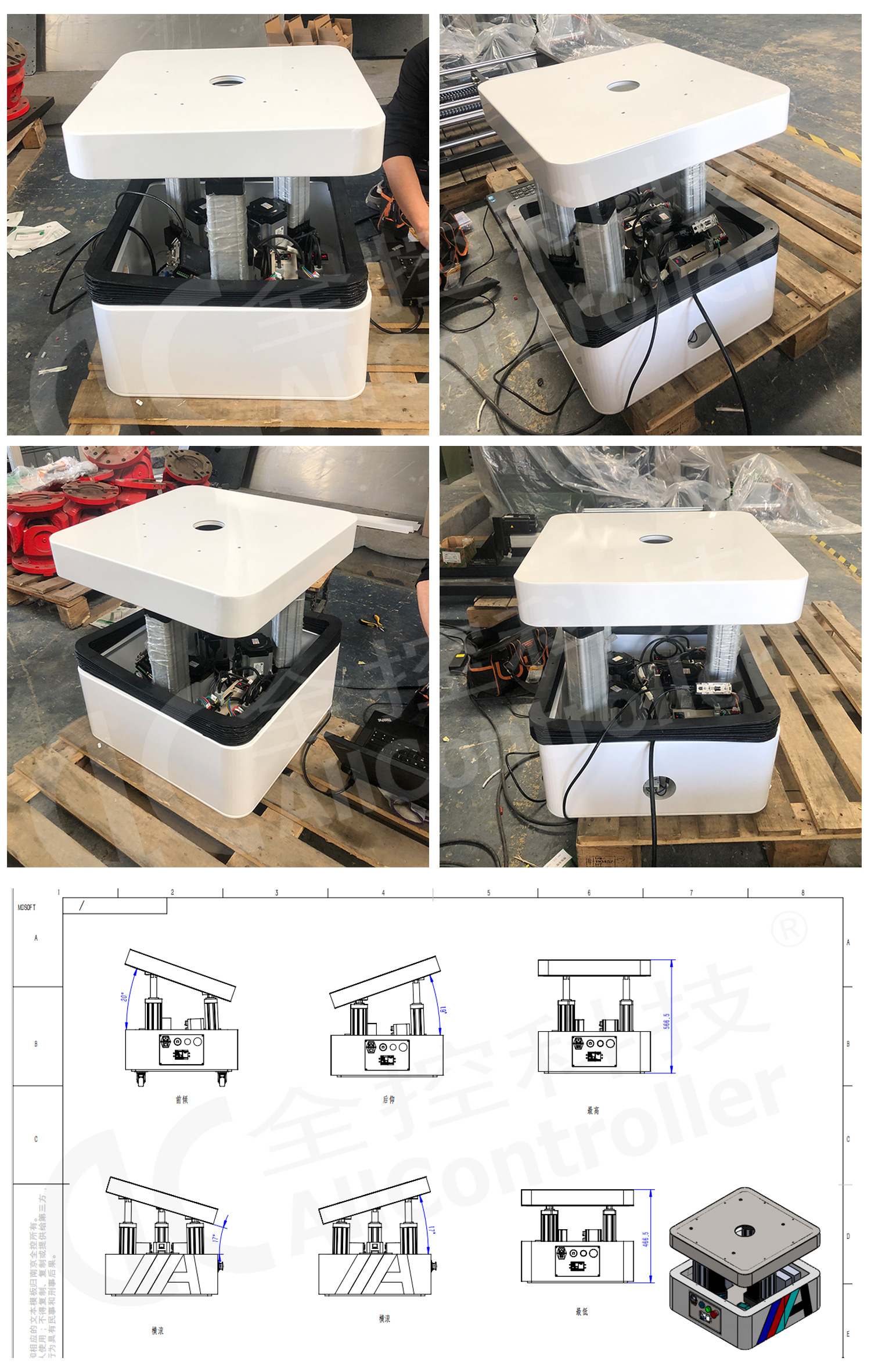

Allcontroller Control Motion Platform Schematic
We always insist on providing you with high-quality and reliable motion systems.
Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.
