USD $ 25900

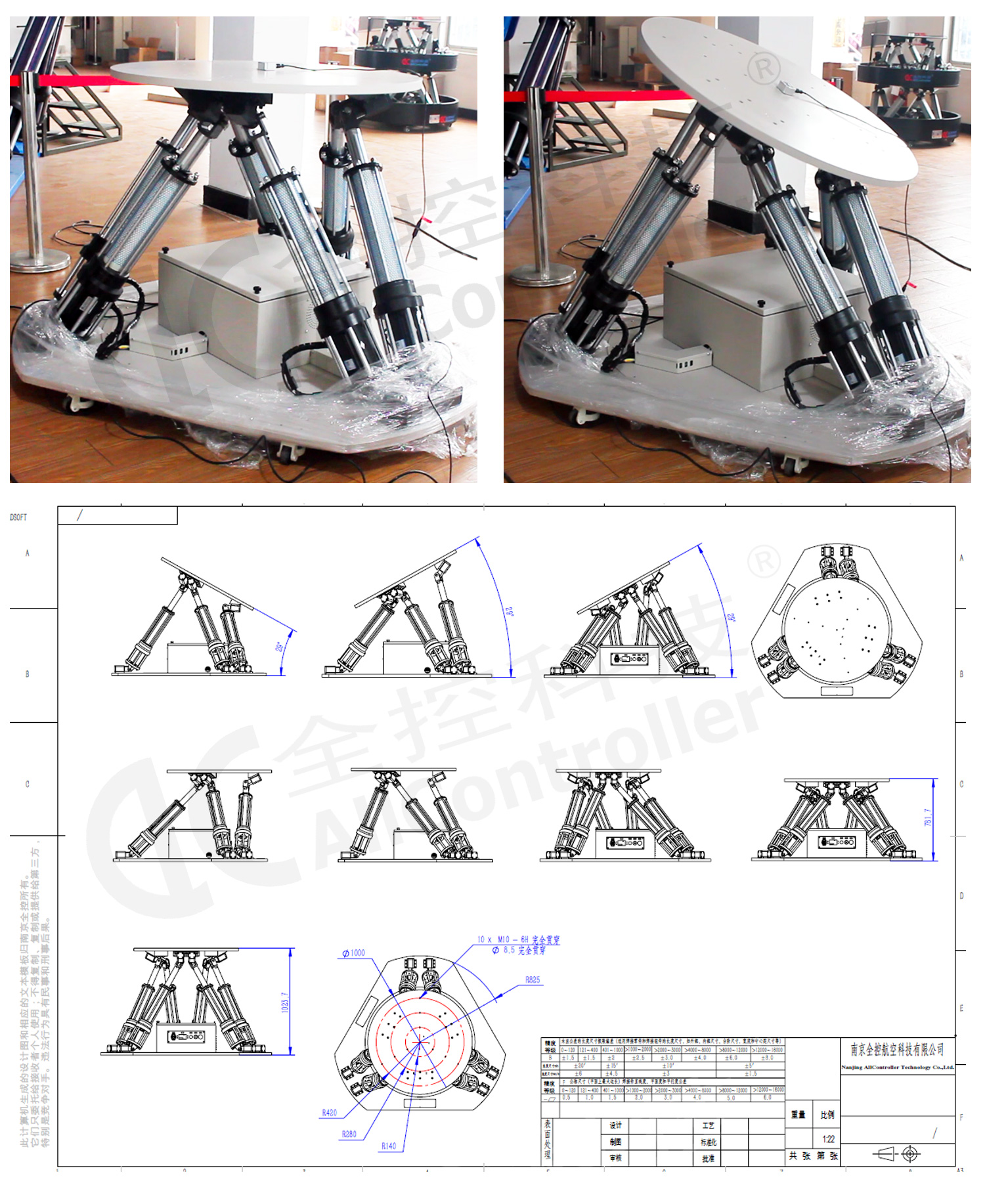

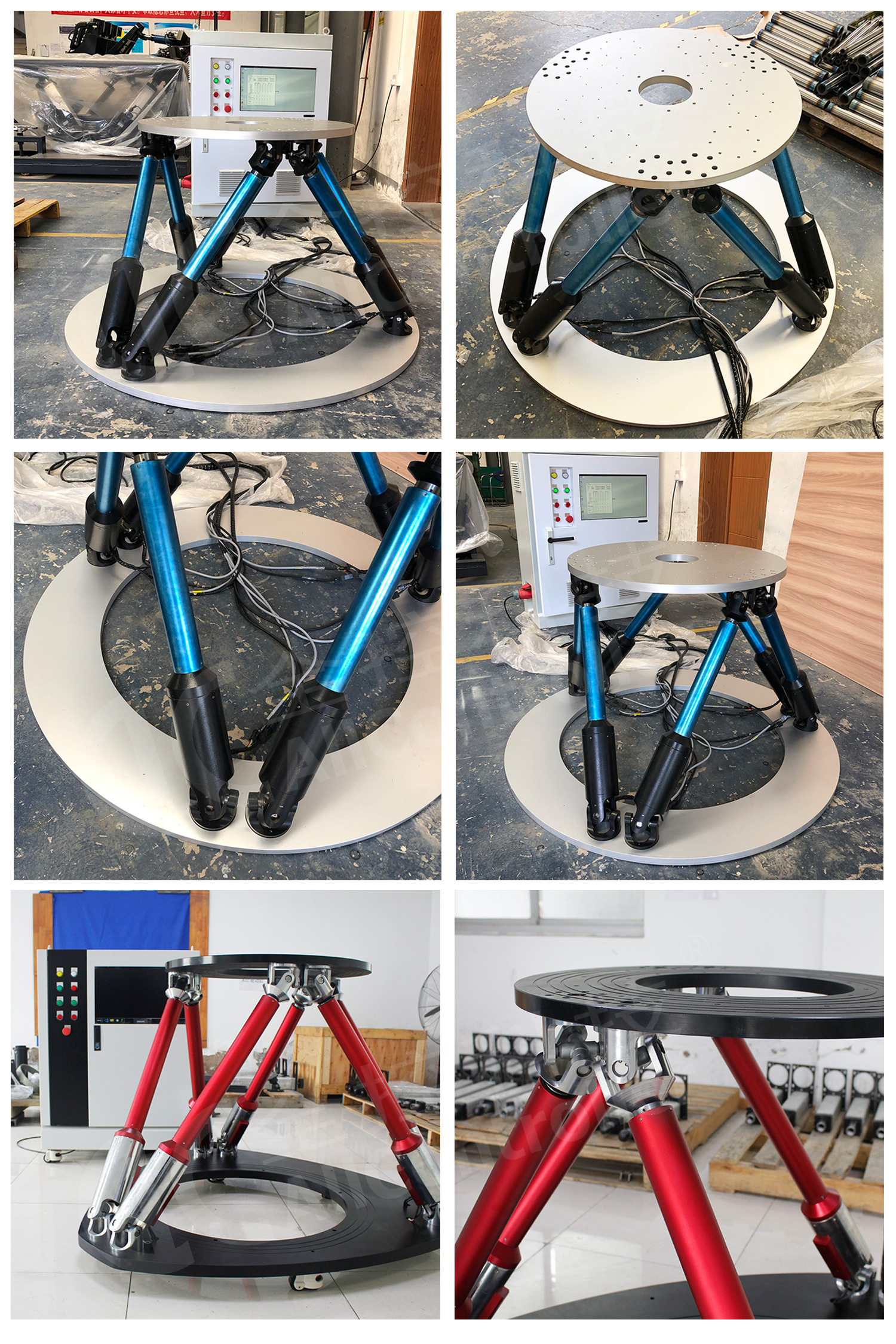

6DOF Stewart Platform for flight simulation tests. It has the following characteristics.
1. High precision, High resolution, High rigidity: 6dof precision positioning and measuring platform incorporates high resolution precision actuator and high precision ball hinge, which enables the six degrees of freedom platform to achieve high resolution precision and repeatability performance under the payload, and the stability meets most of the high-tech industrial field needs;.
2. Important stability: the concept of six-degree-of-freedom precision positioning and measuring platform, especially its own platform and actuator to ensure a very high stability and long-term positioning accuracy.

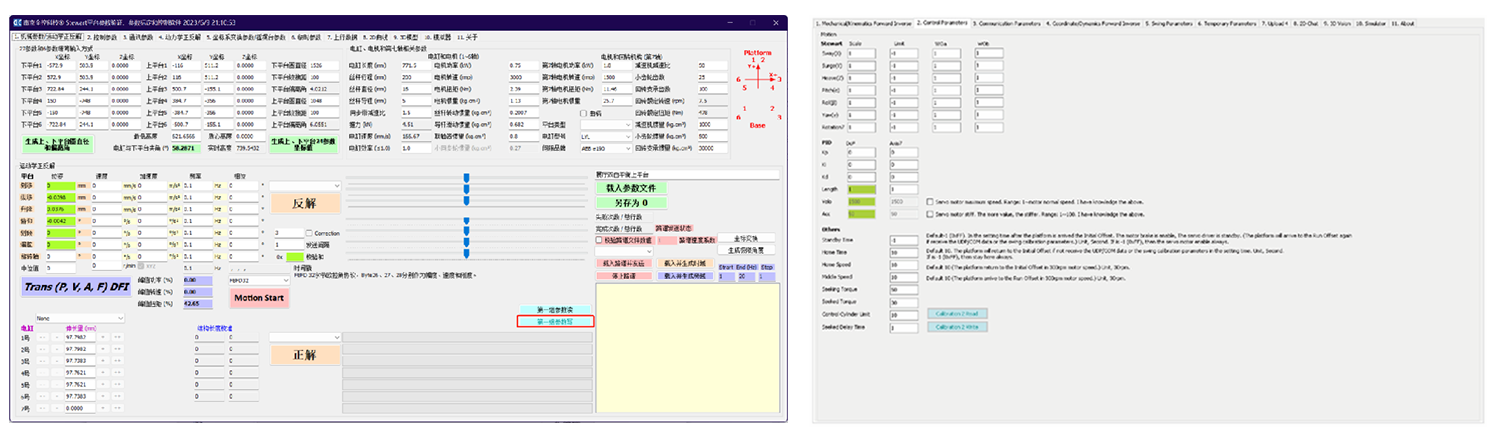

3. Multiple software configurations: The six-degree-of-freedom precision positioning and measuring platform has its own control and calibration software, which allows setting the center point of rotation and defining virtual end switches and other mechanical switches complementary to each other.
4. Two models: independent dedicated programming interface system (API) can be easily assembled through Ethernet and RS232 control environment (EPICS, SPEC, TANG0); the other is through the graphical interface user's precise special control software (GUI).
☑Game Simulator
☑Industrial Testing
☑Teaching and training
☑Medical equipment
☑Experimental research
☑Software testing
☑Satellite test platform
☑Flight Simulator
☑Film shooting
☑Sea motion compensation
☑Earthquake simulation
☑Drone landing
☑All kinds of simulated driving
☑Other fields...
| Features | Excursion | Velocity | Acceleration |
|---|---|---|---|
| Roll | ±29° | 40°/s | 100°/s² |
| Pitch | ±29° | 40°/s | 100°/s² |
| Twist | 0-30° | 40°/s | 100°/s² |
| Surge | 320mm | 500mm/s | 5m/s² |
| Sway | 310mm | 500mm/s | 5m/s² |
| Heave | 320mm | 500mm/s | 5m/s² |

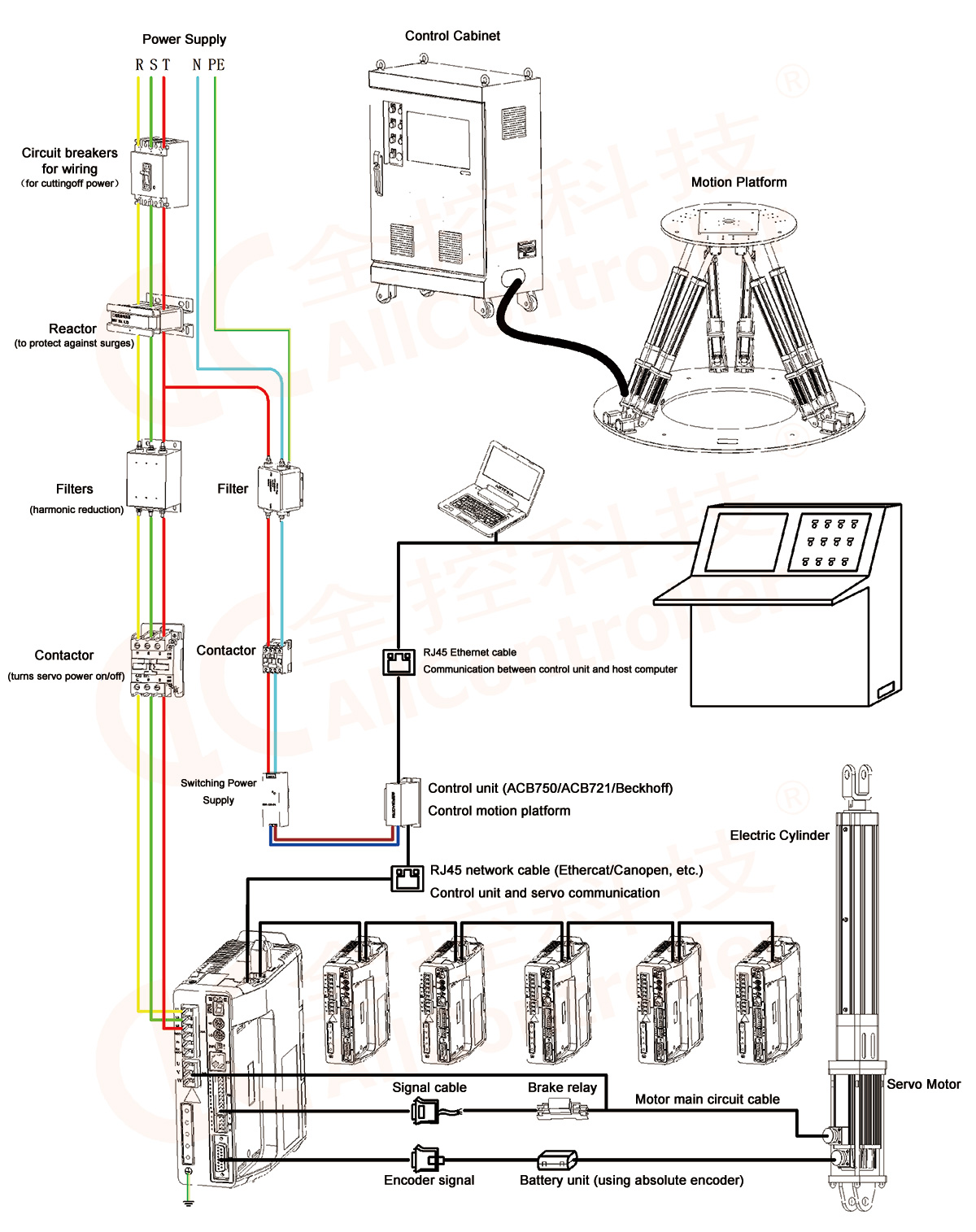

Allcontroller Control Motion Platform Schematic
We always insist on providing you with high-quality and reliable motion systems.
Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.
