Includes three monitors, racing seat, and Logitech G29 steering wheel.
The 6DOF racing simulator, the motion control software receives the vehicle speed, acceleration, angular velocity, angular acceleration, road conditions, engine operating parameters and vehicle-ground matching parameters output by the vehicle dynamics kinematics simulation software in real time, and through the six-degree-of-freedom motion model solution, the driving platform produces acceleration, deceleration, pitch, roll, yaw, impact, vibration, bumps and other motion sensations that are coordinated and synchronized with the scene. Simulate the driving conditions of the vehicle in an infinite area within the limited capabilities of the motion platform.
During the driving training process, the driver has no obvious feeling of the dynamics generated by the necessary false motion of the motion platform at any time. A 1000M Ethernet card is used to realize real-time communication between the motion platform and the vehicle dynamics simulation computer, and the data update cycle is <10m/s. In order to ensure the safety of the motion platform during operation, the platform is equipped with multiple safety protection and fault diagnosis functions such as mechanical, electrical, and software, and an emergency stop button.
☑Game Simulator
☑Racing Simulator
☑Ship simulation
☑Software testing
☑Flight Simulator
☑Film shooting
☑All kinds of simulated driving
☑Other fields...
| Features | Excursion | Velocity | Acceleration |
|---|---|---|---|
| Roll | ±14° | 40°/s | 100°/s² |
| Pitch | ±14° | 40°/s | 100°/s² |
| Twist | ±15° | 40°/s | 100°/s² |
| Surge | 270mm | 400mm/s | 4m/s² |
| Sway | 270mm | 400mm/s | 4m/s² |
| Heave | 310mm | 400mm/s | 4m/s² |
Electric Cylinder Parameters
Model: AC-EC-80-400
Form: Direct-connected type
Stroke (mm): 400, rated force (kN): 5, reduction ratio: 1.5
Mounting: Front and rear fork hinge/flange/trunnion
Rated speed(mm/sec): 167 (continuously adjustable)
Limit switches: 2 pcs, NPN type, normally open.
With internal magnetic ring
Servo motor and drive parameters.
HC 750W-80mm flange motor (Brand:inovance)
Rated speed: 3000rpm, operating current: 5A
Rated motor power:750W*6, torque:2.39N.m
Rated speed:3000rpm
Servo drive parameters:
Supply voltage:AC 220V , working current:5A
System power (maximum peak):4.5kW
System power (actual consumption):2.7kW

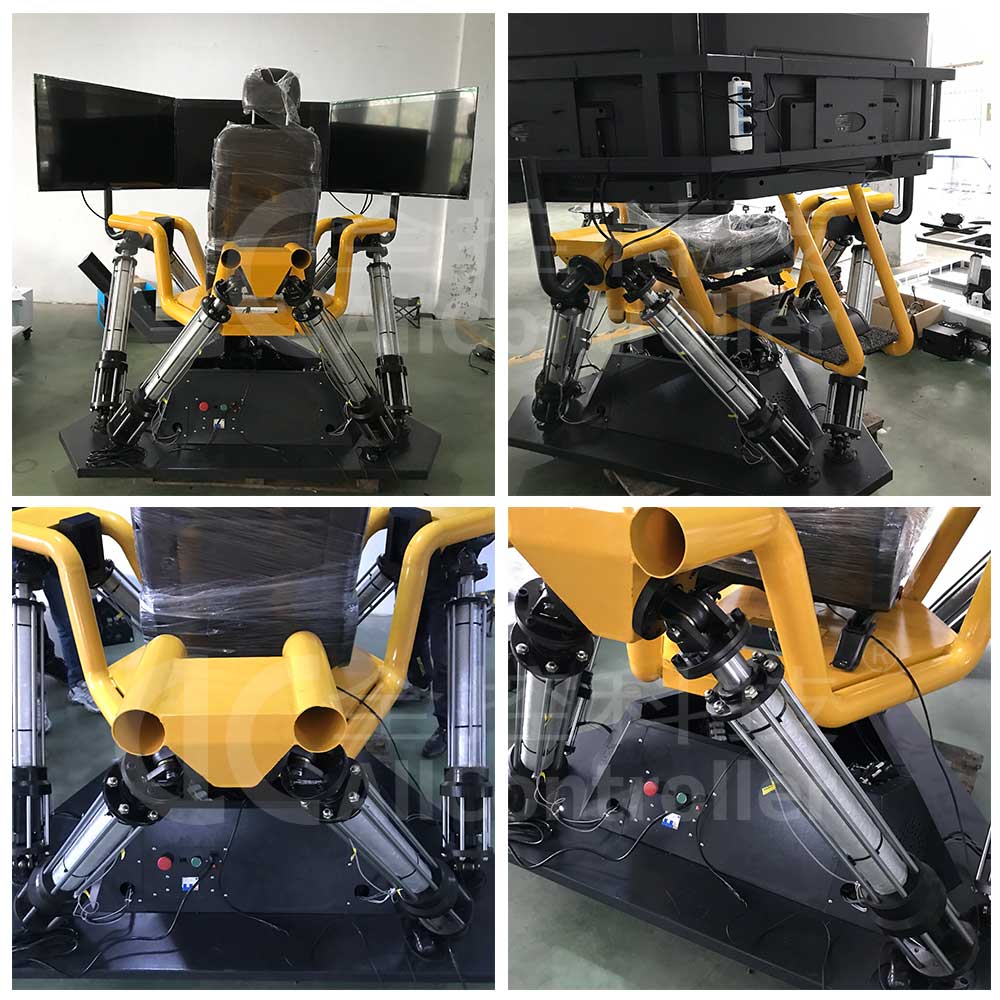

The 6DOF racing simulator adopts the Stewart platform structure, which realizes the six-degree-of-freedom motion of the upper platform in space through the expansion and contraction of six sets of servo actuators. The working principle of the motion stage is as follows: the operator sets the parameters of the desired reproduced motions, such as the waveforms, amplitudes and frequencies of the platform displacements and attitudes, through the human-computer operation interface of the monitoring unit. These motion parameters are transmitted to the motion control computer, the motion control computer through real-time kinematic solution (kinematic position inverse solution), the actuator motion and generate control instructions, the control instructions from the servo control unit after signal conditioning output, drive the servo system movement to achieve the desired motion attitude. At the same time, the servo control unit real-time acquisition of actuator displacement, speed and other parameters to realize the monitoring and protection of the motion test bench, and display a variety of information.

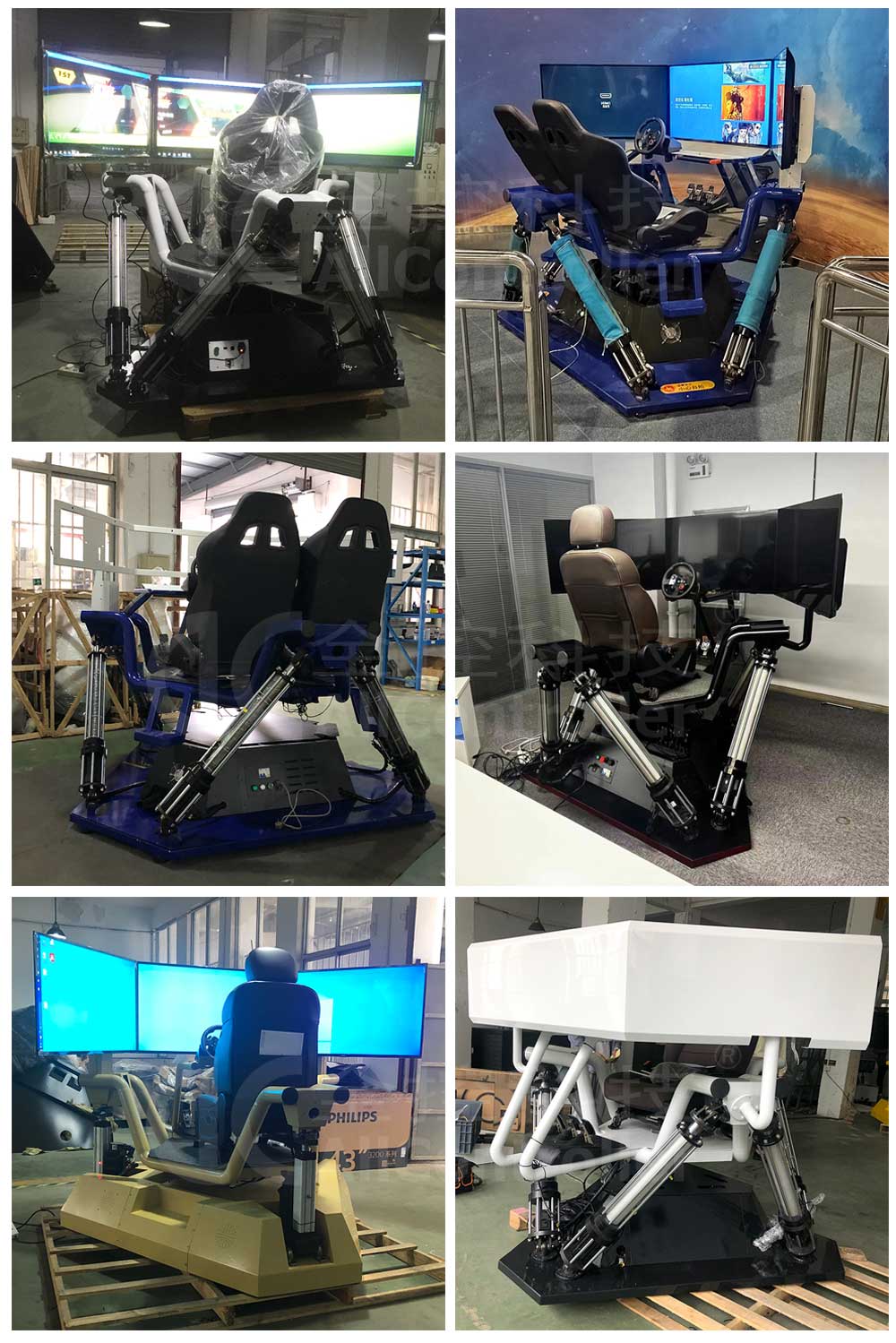

The 6DOF racing simulator can read the force feedback data in the game and dynamically reflect it to the driver, which can realize the centrifugal force of the real car, push back, shaking, bumps and other road conditions, so that the player can feel in the cockpit and experience the visual and tactile impact of racing physics. It has the effect of high fun, novelty, excitement, shock, entertainment, popularization of science, which can quickly attract customers' eyes and super advanced entertainment experience. High-definition display screen, professional racing accessories and sound system, accurately restore the vehicle impact, crash, acceleration and other instant gravity speed, road surface undulation feeling, the driver will get an unprecedented unique experience.
Allcontroller Control Motion Platform Schematic
We always insist on providing you with high-quality and reliable motion systems.
Our customized six-degree-of-freedom motion system includes: mechanical analysis, kinematic analysis, dynamic analysis, modal analysis, finite element analysis, control simulation and accuracy compensation, etc. It is completely built into the control software and supports multiple communication interfaces. Customers can access their own developed control software through the interface.
