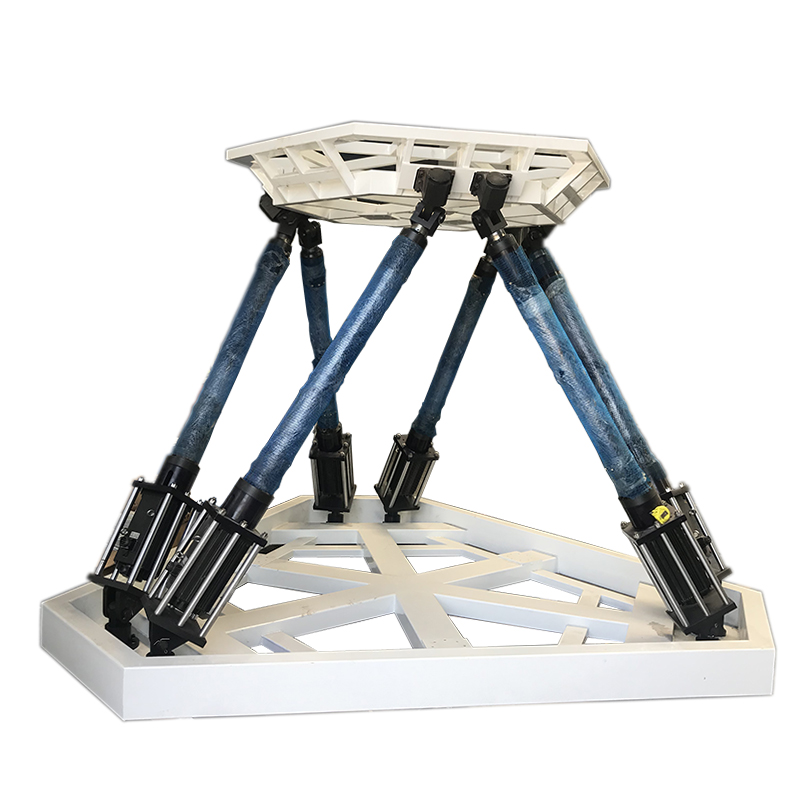

Due to its extremely broad application prospects, the six-degree-of-freedom motion platform is composed of six oil cylinders, six universal hinges on the upper and lower sides, and two platforms on the upper and lower sides.
The lower platform is fixed on the foundation, with the help of the telescopic movement of six electric cylinders, the movement of the upper platform in six degrees of freedom (X, Y, Z, α, β, γ) in space is completed.
It can simulate various space motion attitudes, which can be widely used in various training simulators such as flight simulators, ship simulators, naval helicopter take-off and landing models
Virtual platforms, tank simulators, car driving simulators, train driving simulators, earthquake simulators, dynamic movies, entertainment equipment and other fields, and even available
The docking to the space spacecraft, the refueling docking of the aerial tanker. In the processing industry, it can be made into six-axis linkage machine tools, smart robots, etc. Due to six degrees of freedom
Development of motion platform, involving mechanical, hydraulic, electrical, control, computer, sensor, spatial motion mathematical model, real-time signal transmission and processing, graphics
A series of high-tech fields such as display, dynamic simulation, etc. Therefore, the development of the six-degree-of-freedom motion platform has become the hydraulic and control field of universities and research institutes.
Iconic symbol of domain level.

Parameter

Platform Parameters		Electric Cylinder Parameters		Servo motor and driver parameters:
size	Φ2500mm*2500mm	form	Foldback	Rated speed	2000rpm
weight	2800kg	Screw diameter	200mm	Working current	21A
payload	2800kg	Screw lead	20mm	Motor rated power	7.5KW*6
longitudinal displacement	4000mm	journey	900mm	torque	23.9N.m
Lateral displacement	4000mm	Reduction ratio	1	System rated total power	45kW
Vertical lift	800mm
pitch	±45deg
roll	±24deg
twist	±27deg

Features

·Our motion simulator platform is VR compatible, virtual reality is paired with our motion simulator.

·We offer Full 6 DOF motion simulator versions to reproduce automobiles, aircrafts, or any other vehicle motion.

·Adjustable motion simulator mounts allow customization of the platform to your needs.

·Our motion simulator is very reliable and widely used in universities and military.

·Experience every bump, vibration and speed change, an incredibly immersive experience.

·After careful design and years of experience to ensure the excellent performance and quality of each motion simulator.

·Built in power source, including an active PFC function to protect from short circuit, overload, overvoltage and overheating.

·Compatible with all major racing and flight titles on PC with simple USB plug in.

·Realistic super smooth operation using advanced actuator speed management.

Software Interface

Program

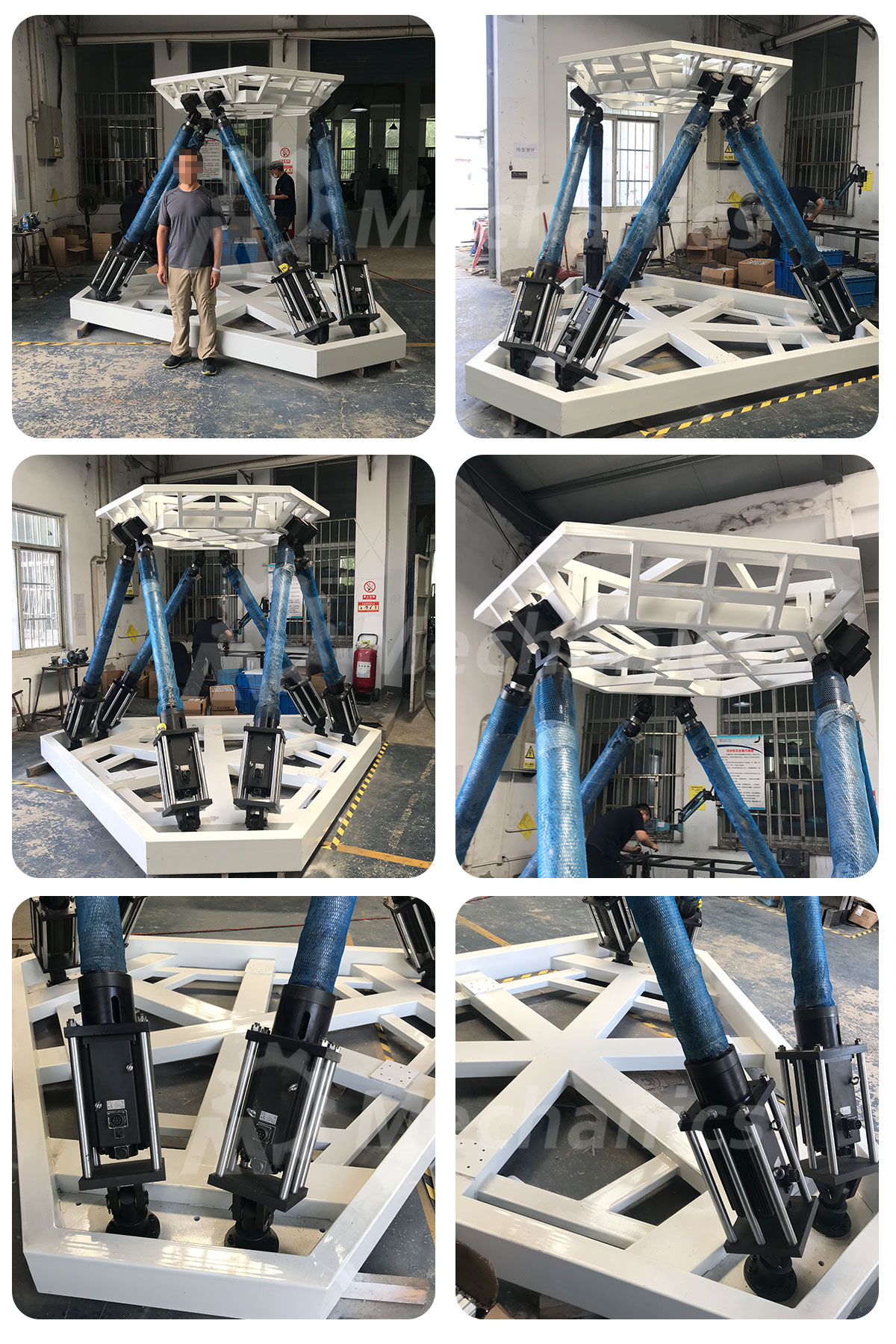

Products Show
